This circuit was found in a Texas optoelectronic manual. Observe the polarity of the supply. Other transistors in the TIP series can be used depending on the load current. The switch resets the circuit.
| Clique na imagem para ampliar |

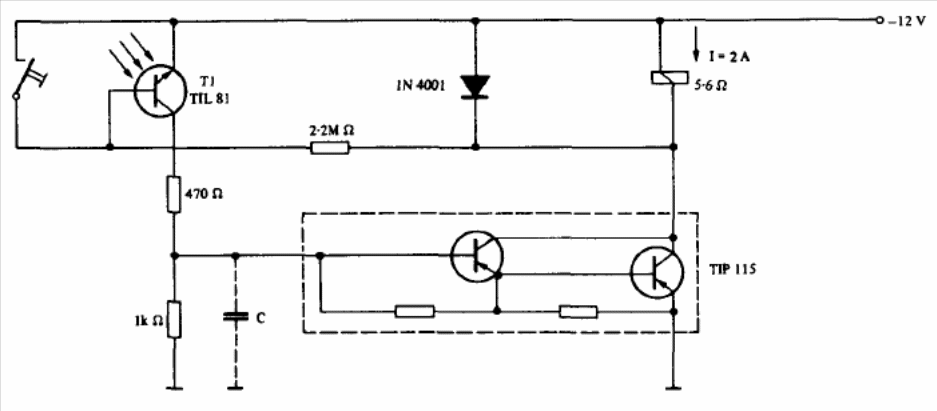

Darlington PNP Photo Trigger (CB14661E)
- Details
- Written by: Newton C. Braga
