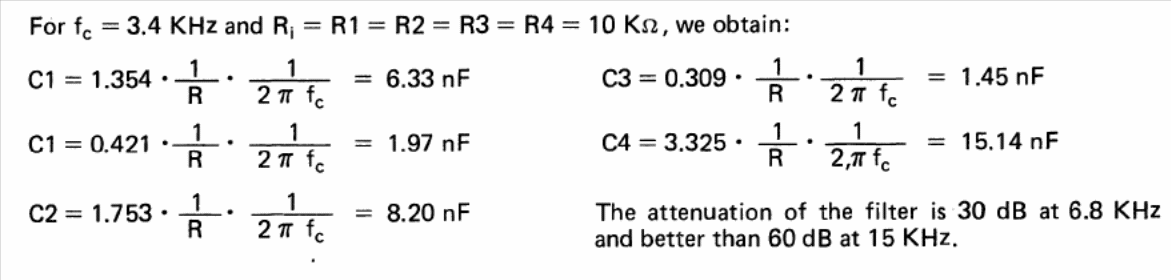

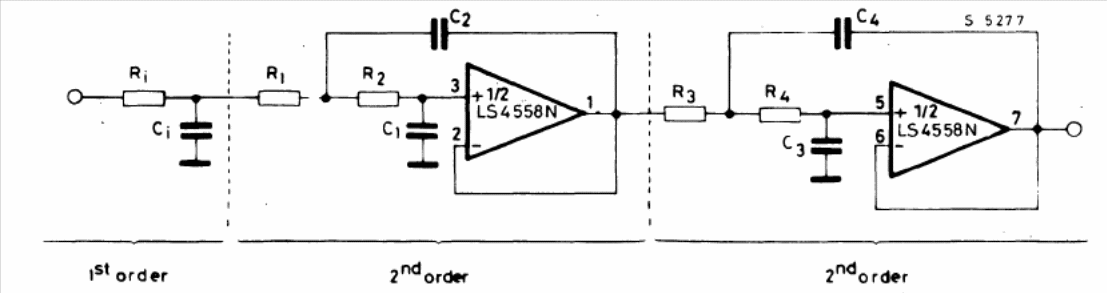

We found this circuit in the SGS Linear Integrated Circuits Manual of a982. The integrated circuit used is a double741. The source must be symmetrical and by the formulas next to the diagram the components can be calculated for other frequencies.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
