Electronic Rheostat UAA1015B (CB15347E)

Details
Written by: Newton C. Braga

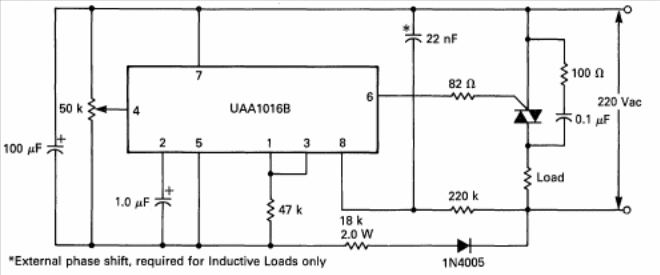

This circuit is from Motorola's Linear Interface ICs of 1993. The integrated circuit is not common and the Triac is chosen according to the power of the controlled load.
