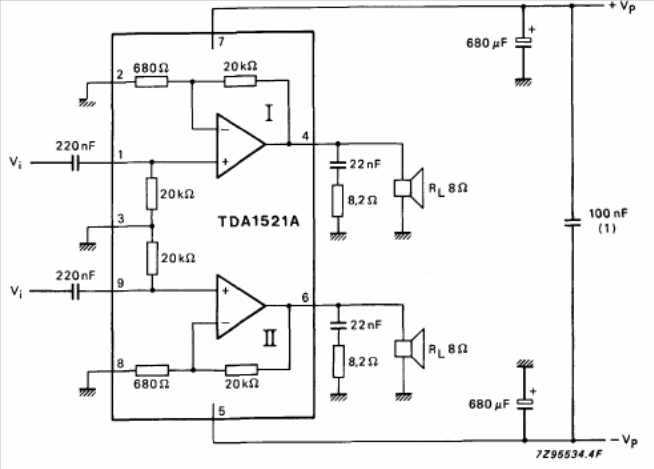

This amplifier for sound equipment was found in the Philips Databook of 1990. The circuit can be powered by a symmetric source of 7, .5 to 20 V. The integrated circuit must have a good heat radiator.
| Clique na imagem para ampliar |
6 W per Channel Amplifier TDA1521A (CB15390E)
- Details
- Written by: Newton C. Braga
