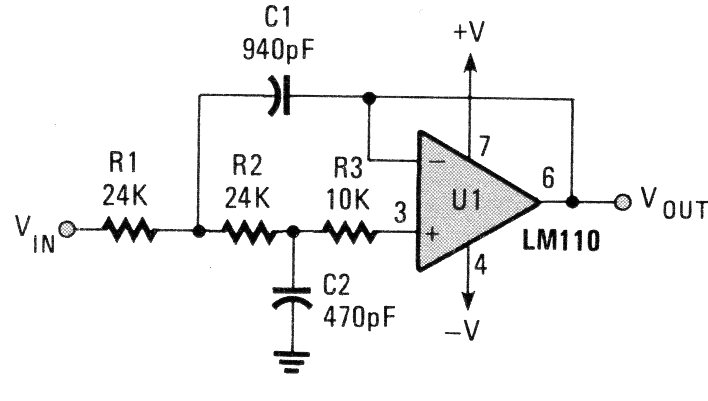

The frequency of this circuit depends on C1 and, for the indicated values, it is 1 kHz. Equivalent operational amplifiers can be used, and the power supply must be symmetrical.
| Clique na imagem para ampliar |
Active Low Pass Filter (CB14916E)
- Details
- Written by: Newton C. Braga
