5 to 15 V x 4A Power supply L296 (CB15154E)

Details
Written by: Newton C. Braga

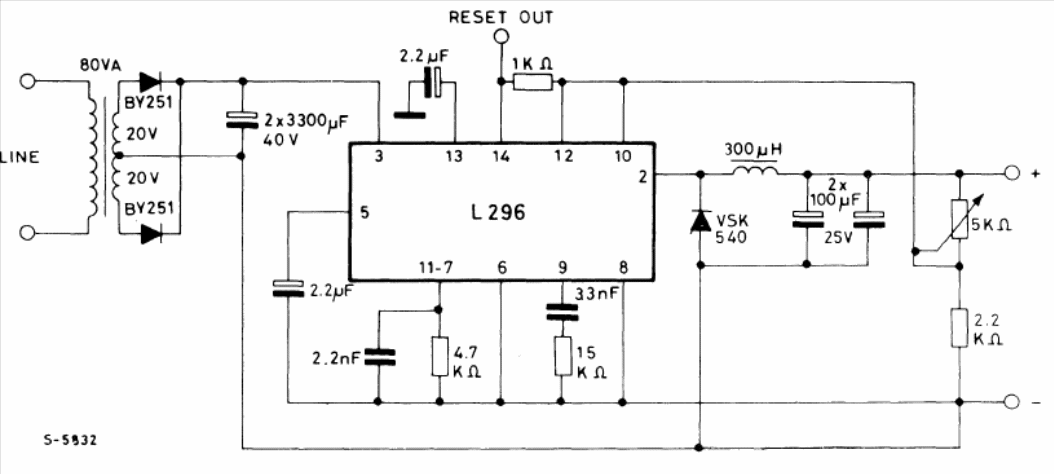

We found this power supply in the 1982 SGS Linear Integrated Circuits manual. The L296 is not common today, but if found it results in an excellent switching source with good stability.
