Window Comparator (CB15267E)

Details
Written by: Newton C. Braga



This circuit makes use of comparators and common operational amplifiers, having been found in Motorola Linear Interface ICs of 1993. The circuit requires symmetrical source.

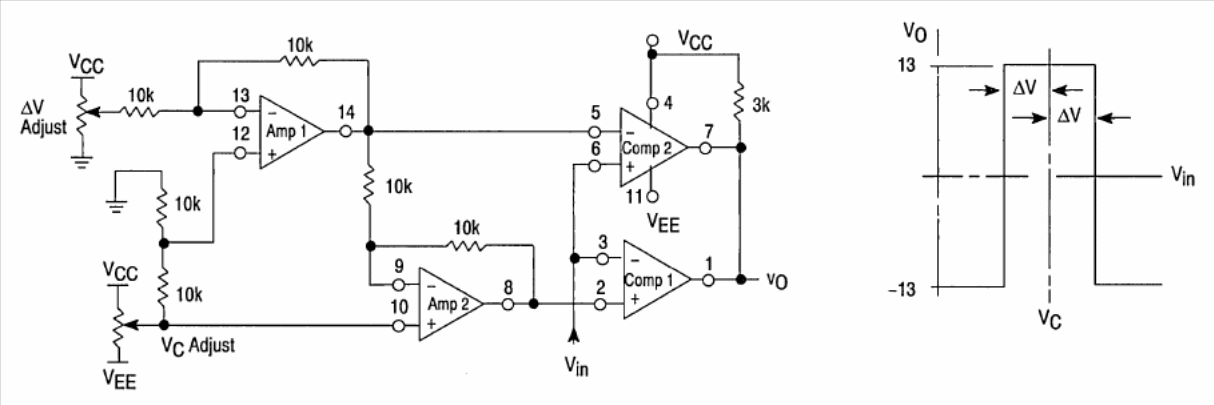

| Clique na imagem para ampliar |
