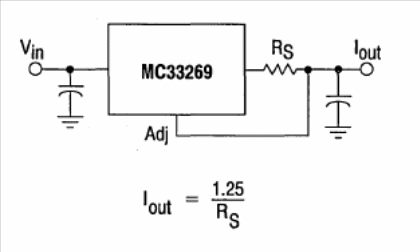

The maximum current of this Motorola LDO is 1 A. The formula next to the diagram makes it possible to calculate Rs for the desired current. The circuit is from Motorola's 1993 Linear Interface ICs.
Current Regulator MC33269 (CB15344E)
- Details
- Written by: Newton C. Braga
