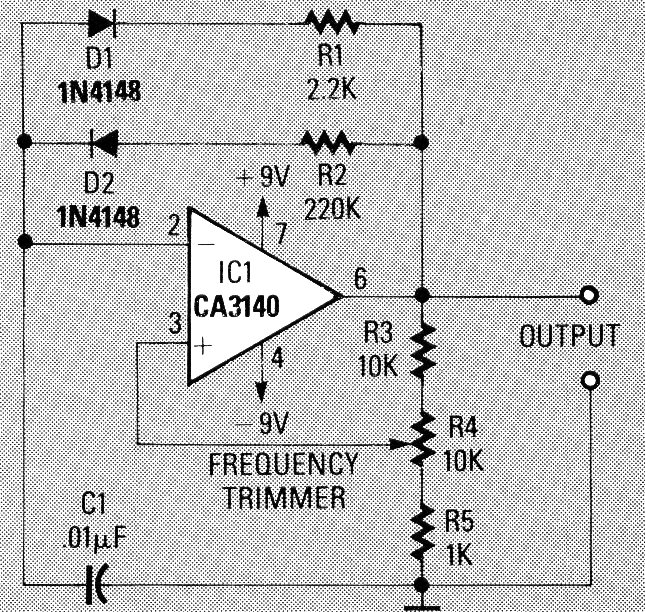

We found this circuit in a Radio Electronics from 1989. It is a common configuration in which you can control the active cycle of the generated signal, as well as its frequency. The power supply must be symmetrical.
