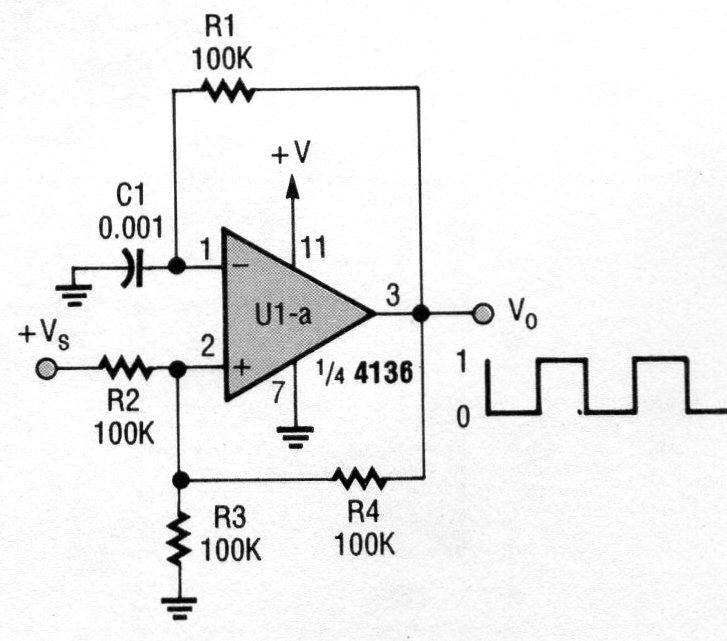

The operational used in this common configuration is a double 741. The circuit can be used to generate signals up to a few hundred kilohertz and in this case the signal is 1 kHz. The power supply does not have to be symmetrical.
