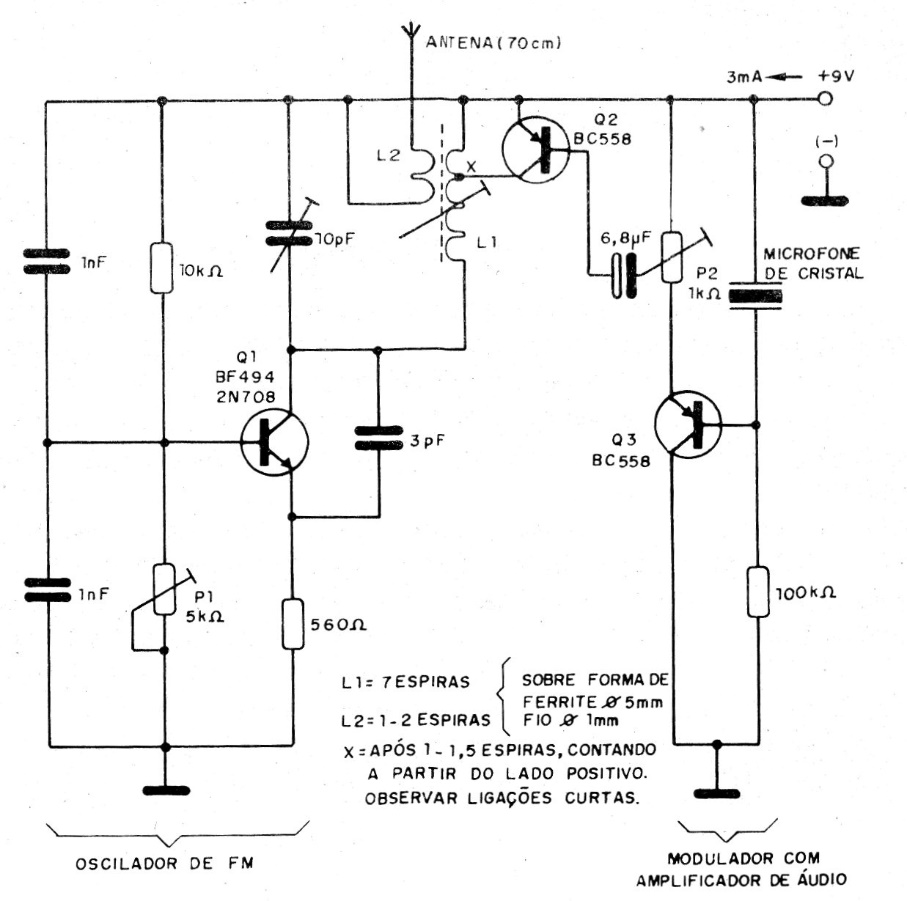

The presented circuit emits signals in the FM band, which can be picked up from a distance of a few tens of meters. The capacitors must be ceramic, and the microphone must be crystal or piezoelectric. The circuit is from a 1993 documentation. Details of the coils are in the text itself.
| Clique na imagem para ampliar |
