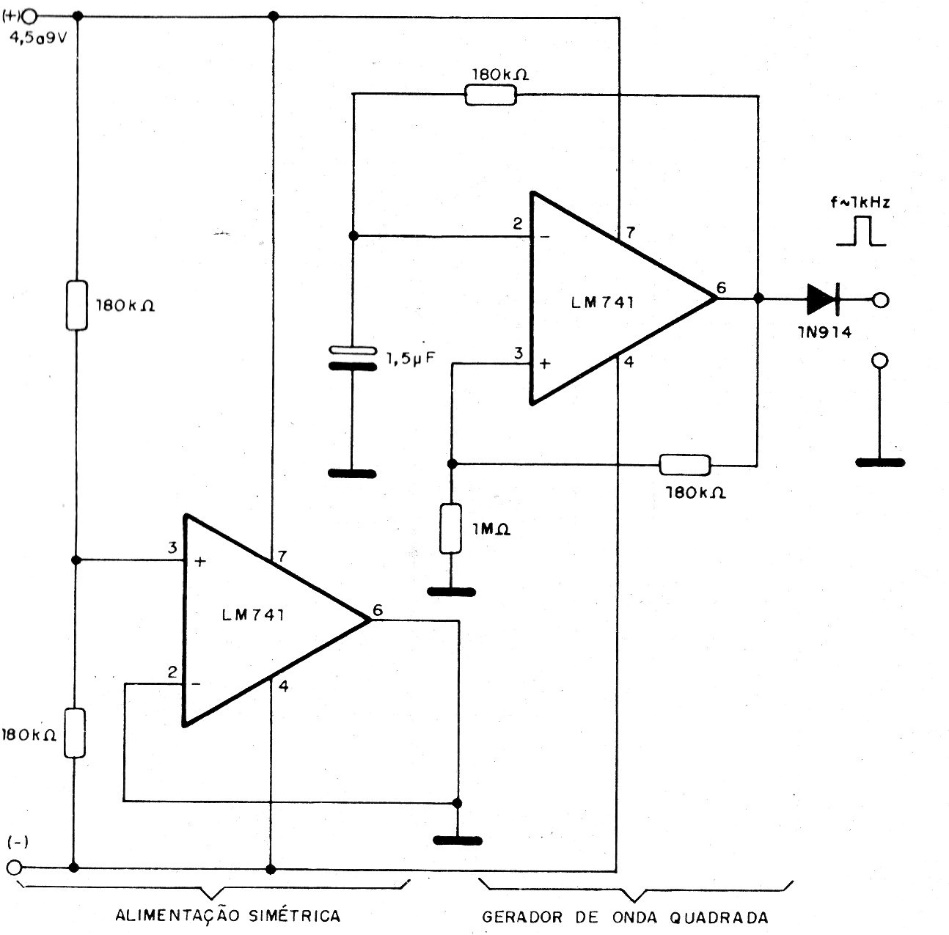

With the values of the components indicated, the circuit generates a 1 kHz signal. The power supply must be symmetrical and operational equivalent to 741 can be used. The capacitor can be changed to generate signals from other frequencies
