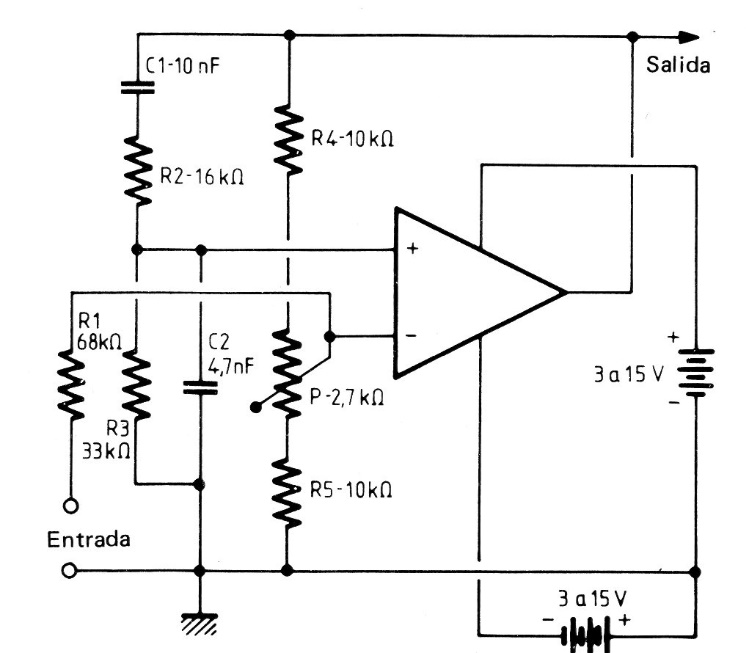

This filter can use almost any common operational amplifier and needs a symmetrical power source. The circuit is from 1982 documentation and with the change of capacitors, other operating frequencies can be obtained.
| Clique na imagem para ampliar |
