6 W Amplifier per Channel TDA1519 (CB15380E)

Details
Written by: Newton C. Braga

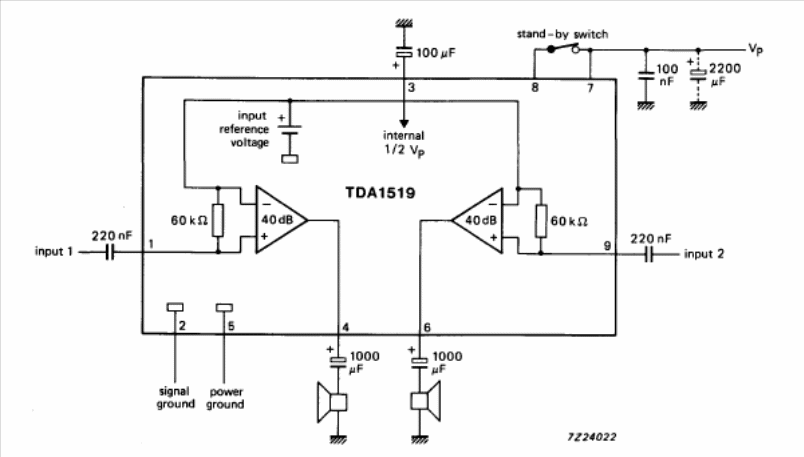

This amplifier, from Philips Databook is suitable for automotive applications. The input resistance is 60k ohms and the frequency range is 20 to 20 kHz.




| Clique na imagem para ampliar |
