Capacitance Meter (CB25988E)

Details
Written by: Newton C. Braga

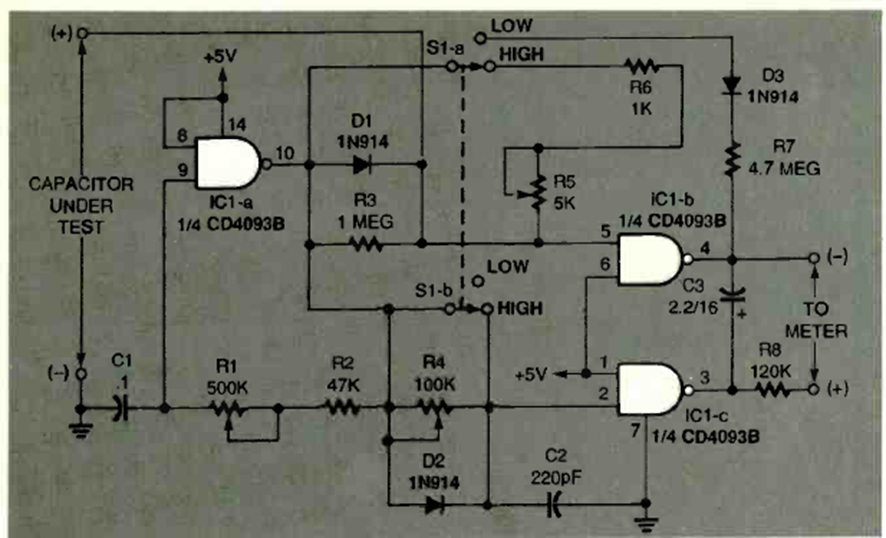

This circuit was originally designed to measure capacitance with an ICL7107 but can be used with other digital modules. The circuit is from Electronics Now magazine from November 1996.
