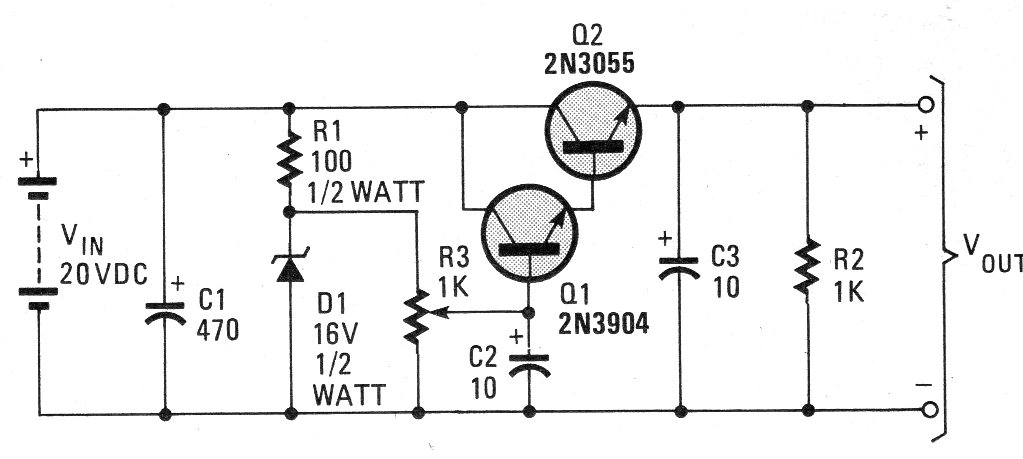

This voltage regulator circuit has a traditional configuration with two transistors, and can be used on a power source up to 3 A. We found the circuit in a documentation from the 90s. The 2N3055 must have a heat sink.
