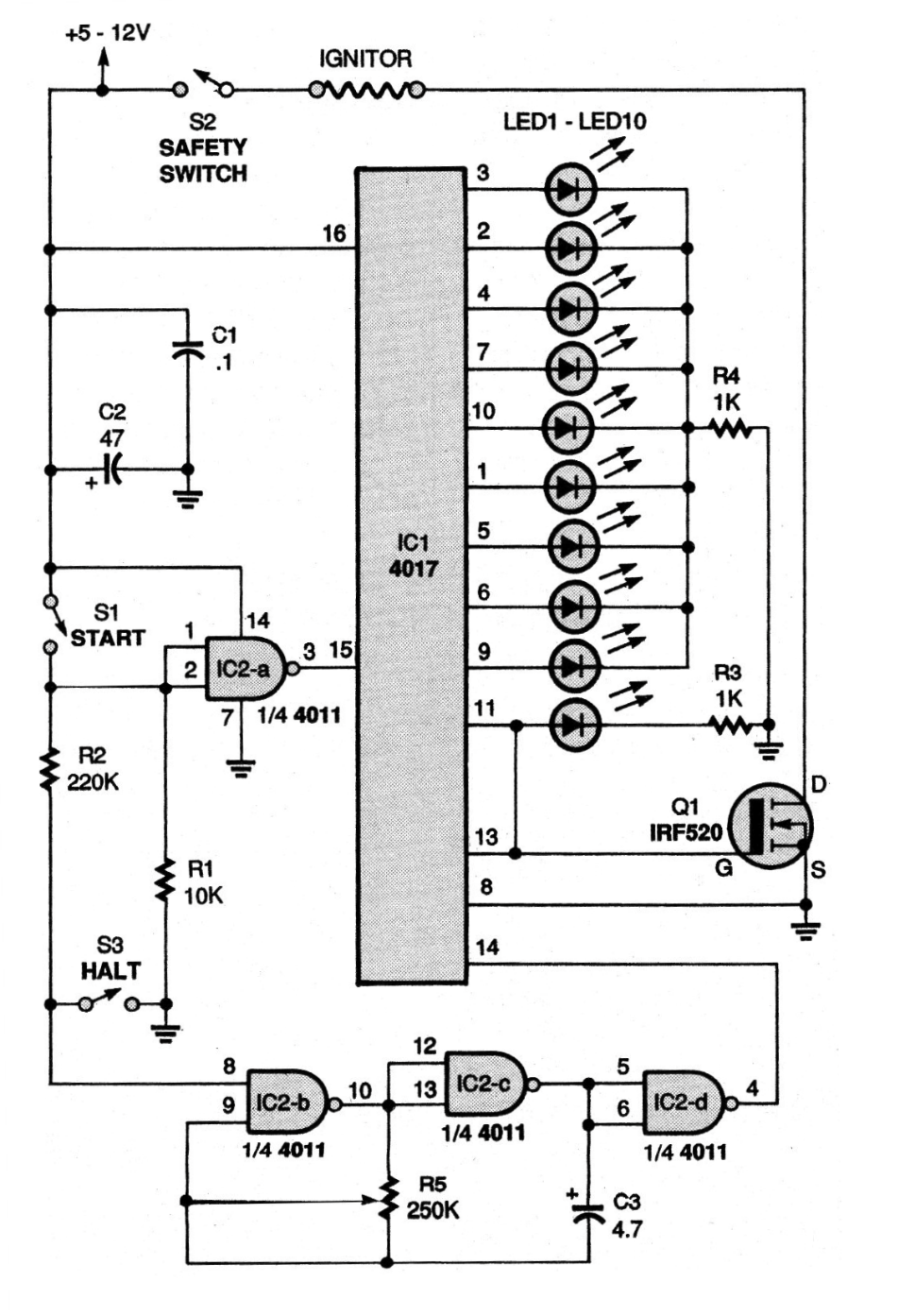

We found this circuit in a 1992 Poptronics. What it does is to activate LEDs sequentially, imitating the countdown and in the last LED the power FET triggers the ignition of the rocket. The circuit can be used for other purposes and the 5 to 12 V supply depends on the ignition.
| Clique na imagem para ampliar |
