22 W BTL Amplifier TDA1519A (CB15379E)

Details
Written by: Newton C. Braga

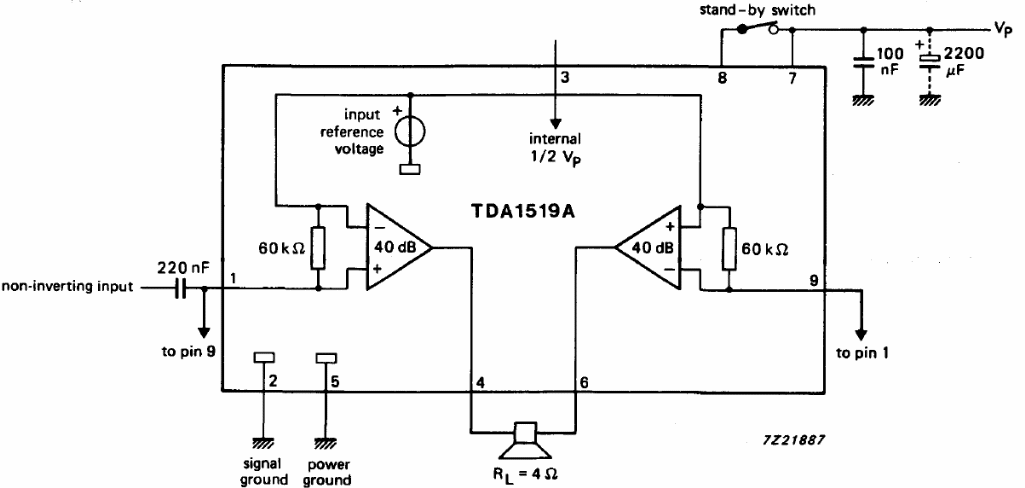

This amplifier is from the Philips Databook of 1990. The circuit is suitable for automotive use and has the characteristics given in the table below the diagram.




| Clique na imagem para ampliar |
