The filter presented is from 1994 but can be implemented with a more modern equivalent. We found this setting in the National Semiconductor Linear Applications Handbook.
| Clique na imagem para ampliar |

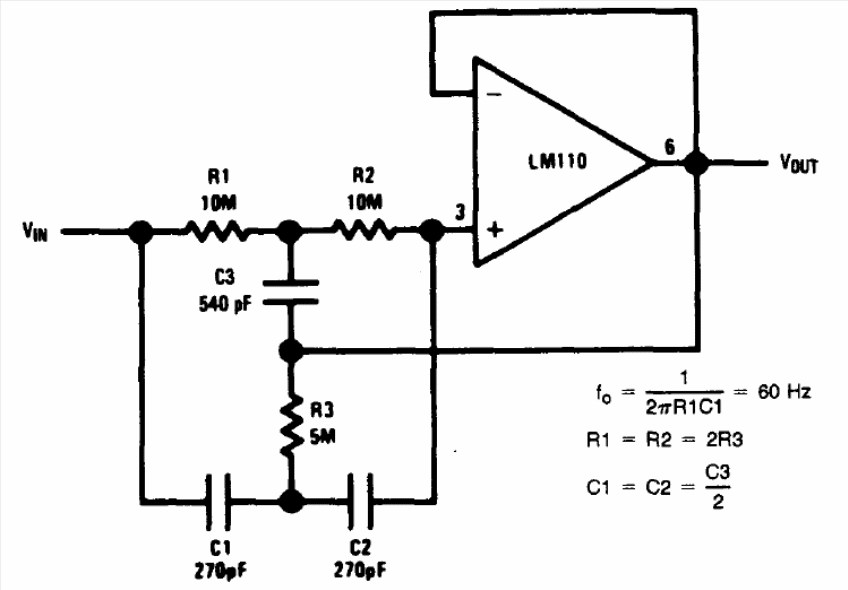

High Q Notch Filter (CB14424E)
- Details
- Written by: Newton C. Braga
