4 W amplifier TDA1013 (CB14724E)

Details
Written by: Newton C. Braga

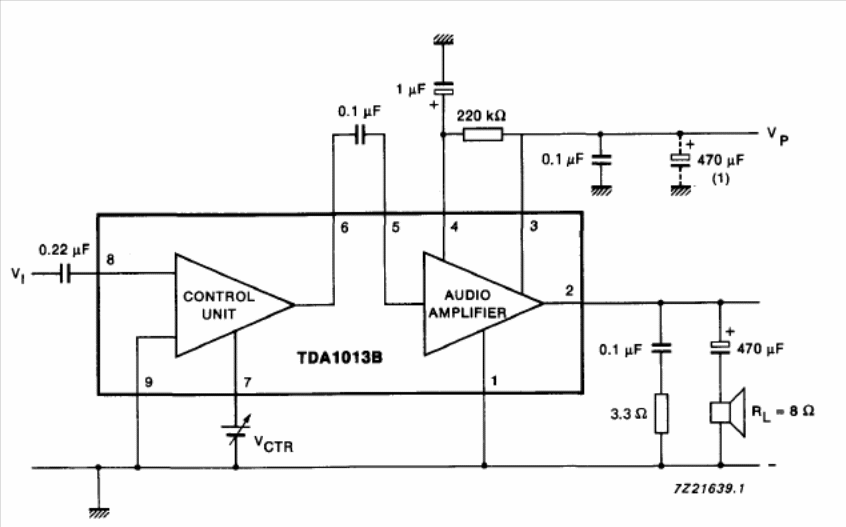

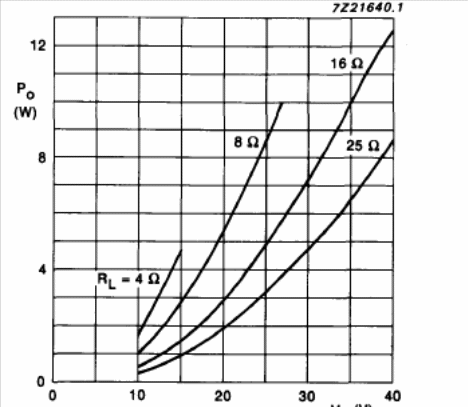

This circuit has tone control, and its power depends on the supply voltage. The circuit is from the Philips integrated circuits manual from 1990.






| Clique na imagem para ampliar |
