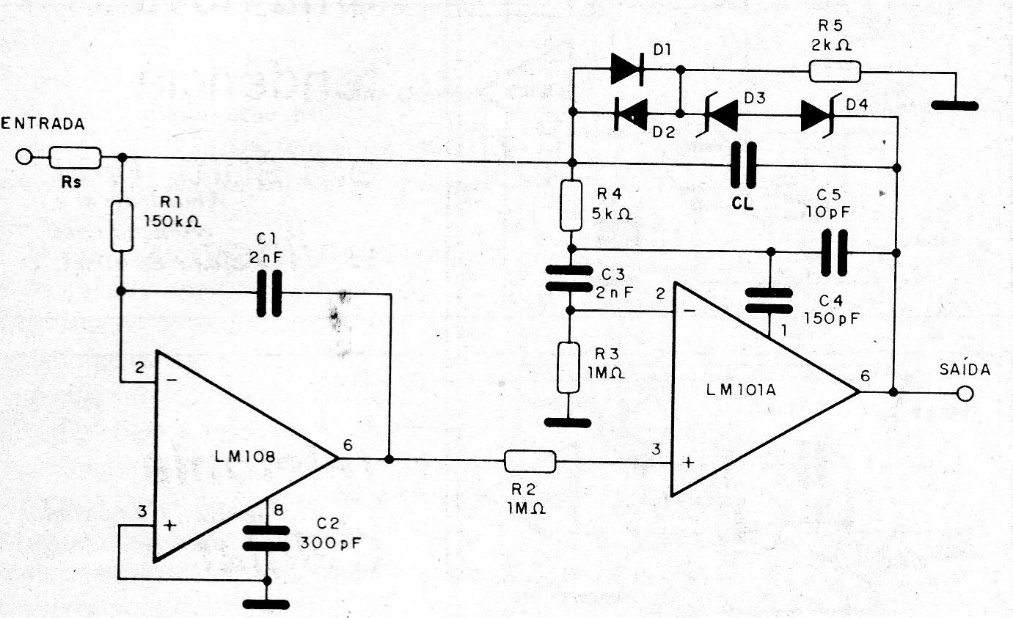

Fast Integrator (CB15814E)

Details
Written by: Newton C. Braga



This circuit was found in a publication by National Semiconductor. As the LM108 is not currently common, the circuit can be implemented with equivalent operational ones. The power supply must be symmetrical.
