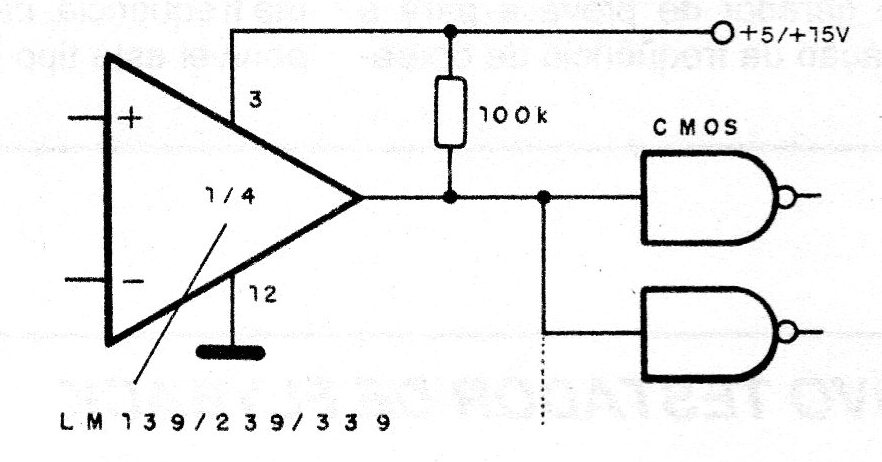

In the figure, we show how the integrated voltage comparators of the 139, 239 and 339 series can be used to excite CMOS digital circuits. Two or more ports can be excited by these comparators. Note that the power supply is the same as the driven CMOS circuits and that in the 139, 239 and 339 series integrated circuits there are 4 comparators that can be used separately.
