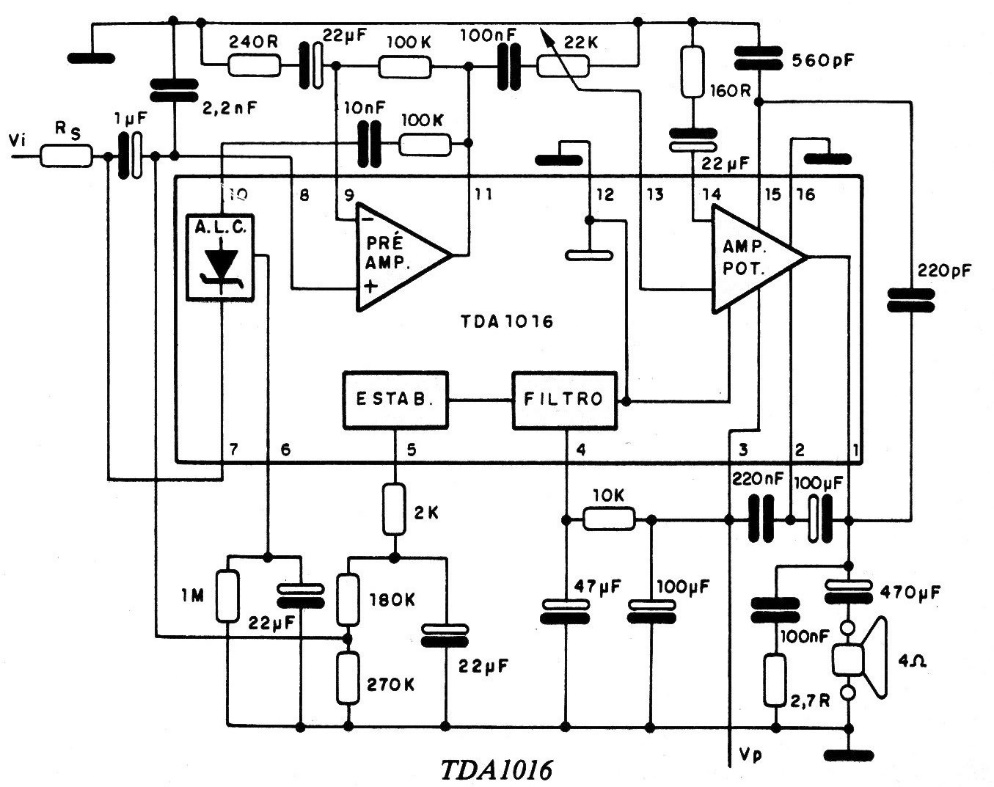

This is an amplifier for recorder and return containing preamplifier and power amplifier with automatic level control, being designed for recorders, and radio recorders. Its operating voltage range is from 3.6 to 15 V, which allows its use in both battery powered equipment and the local network. Two of these can be used in a stereo system. The TDA1016 is presented in a 16-pin DIL housing with an internal heat diffuser. Among the advantages offered by this integrated we highlight:
- Separate preamplifier and amplifier
- Incorporates an A.L.C. (automatic Ievel control) for recording
- Voltage stabilization at 2.6 V
- Short circuit protection
- Built-in thermal protection
- Possibility of switching to the stand-by condition with the reduction of current consumption.
The output power is 2 W at 4 ohms load with 9 V power. With bootstrapping the maximum distortion is 10%.
