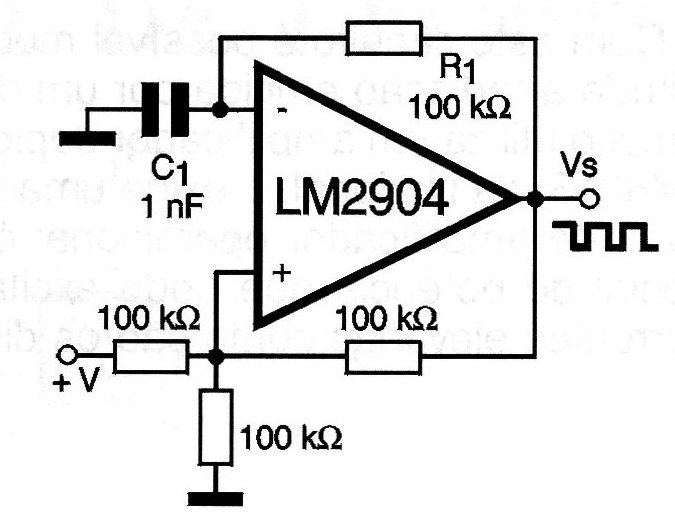

Rectangular signals up to a few hundred kilohertz can be generated with this circuit, which is based on a voltage comparator. The frequency for the components used (C1 and R1) is in the order of 1 kHz. The circuit must be powered by a symmetrical source.
