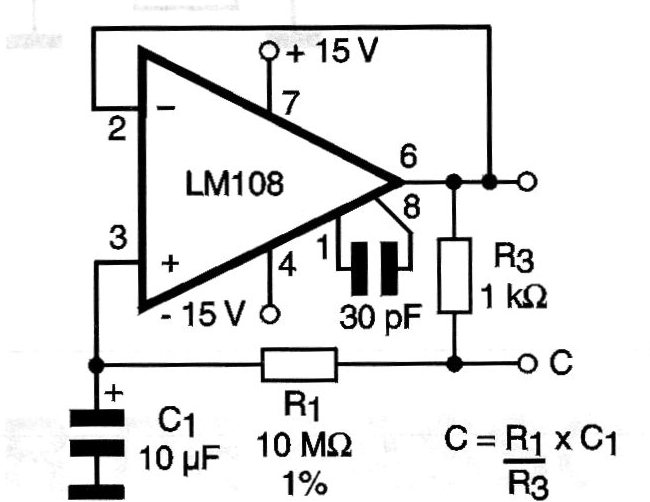

The capacitance shown at the output of this circuit is given by the relationship between R1 and R2, multiplied by the reference capacitance C1. It can be used to obtain large capacitances in time circuits, filters, and oscillators. The operational amplifier must be powered with a symmetrical 15 V source and equivalent equivalents can be tried. See that you need to use precision resistors for this circuit.
