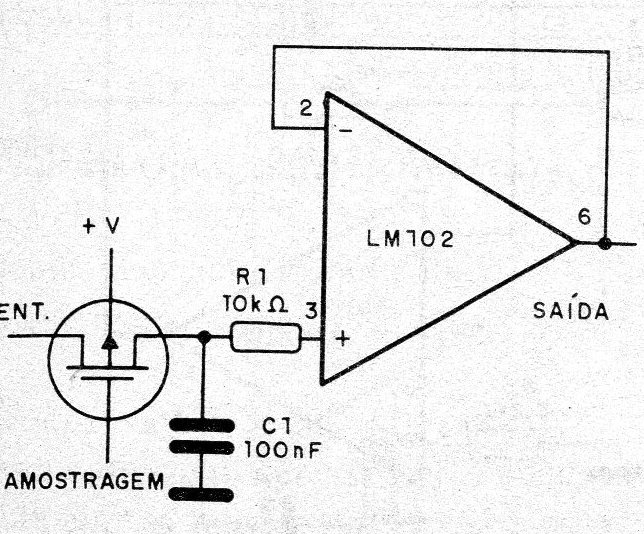

This circuit is from National Semiconductor documentation and employs LM102 operators that are no longer common in our market. Equivalents can be used, and the power supply must be symmetrical. The FET is of the MOS type and almost any type is admitted.
