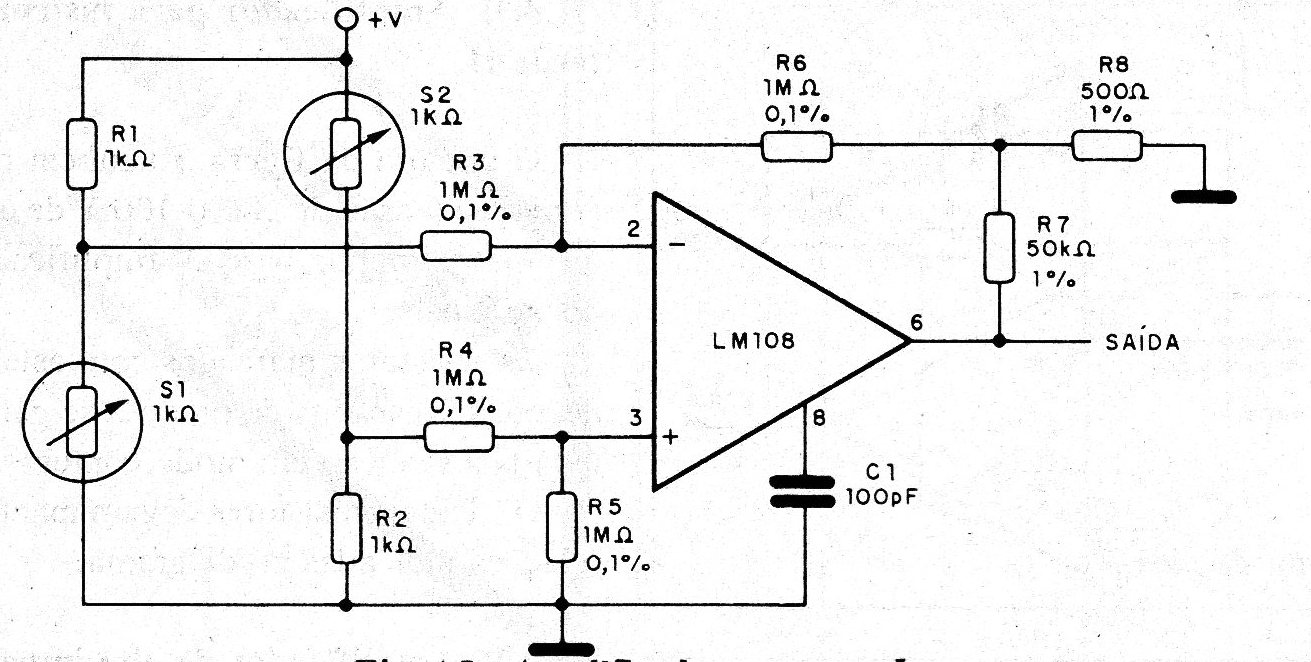

This is an instrument amplifier that uses two resistive sensors. The circuit is suggested by National Semiconductor and the power supply must be symmetrical. Equivalent operational amplifiers can be used.
| Clique na imagem para ampliar |
Bridge Operational Amplifier (CB15804E)
- Details
- Written by: Newton C. Braga
