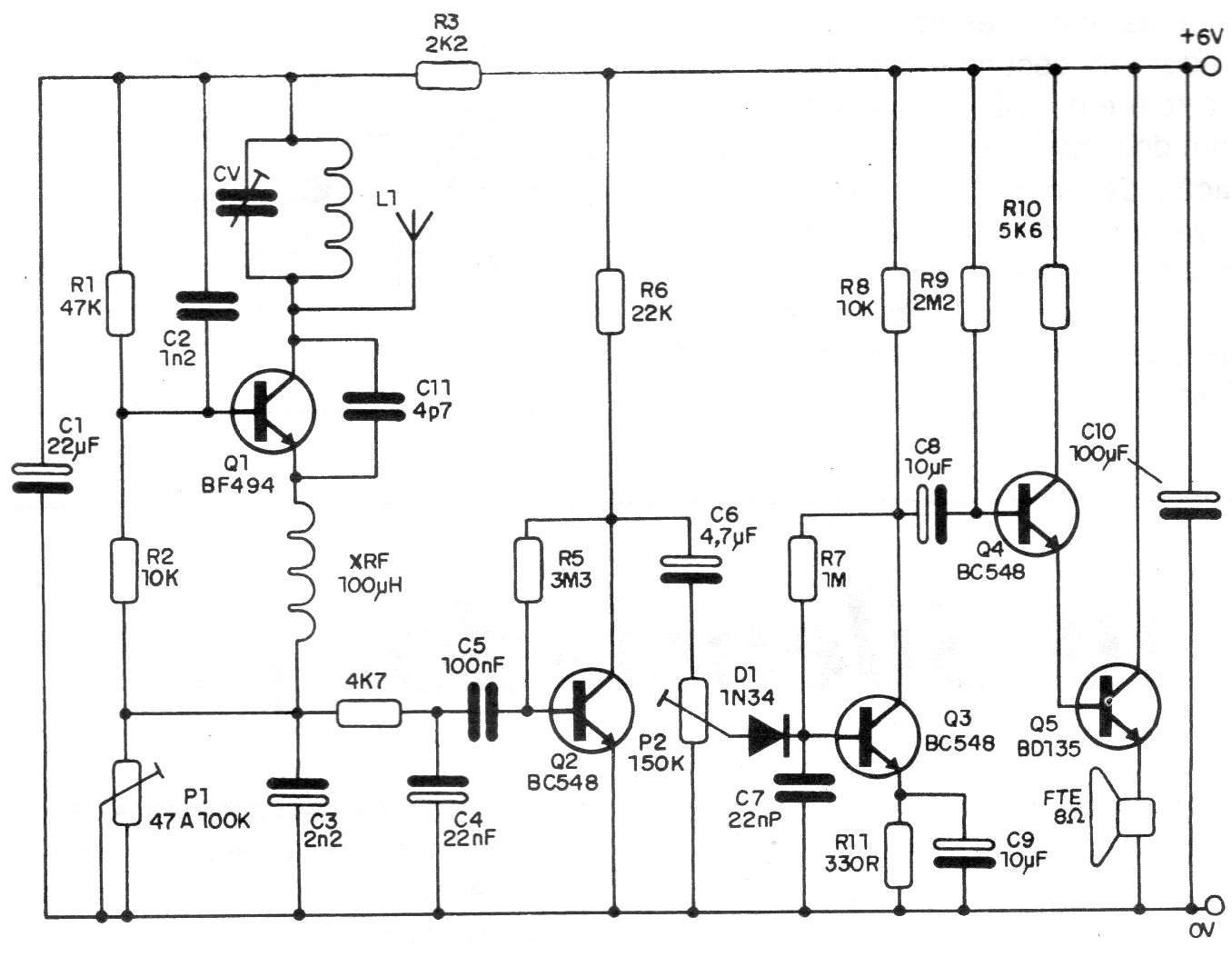

We found this conventional receiver circuit in a 1990 documentation. The circuit includes an audio amplifier stage, which must be powered by a 6 V source with at least 300 mA, given its consumption. The coil consists of 4 turns of wire 22 or 24 in the form of 1 cm without core and the antenna is telescopic.
| Clique na imagem para ampliar |
