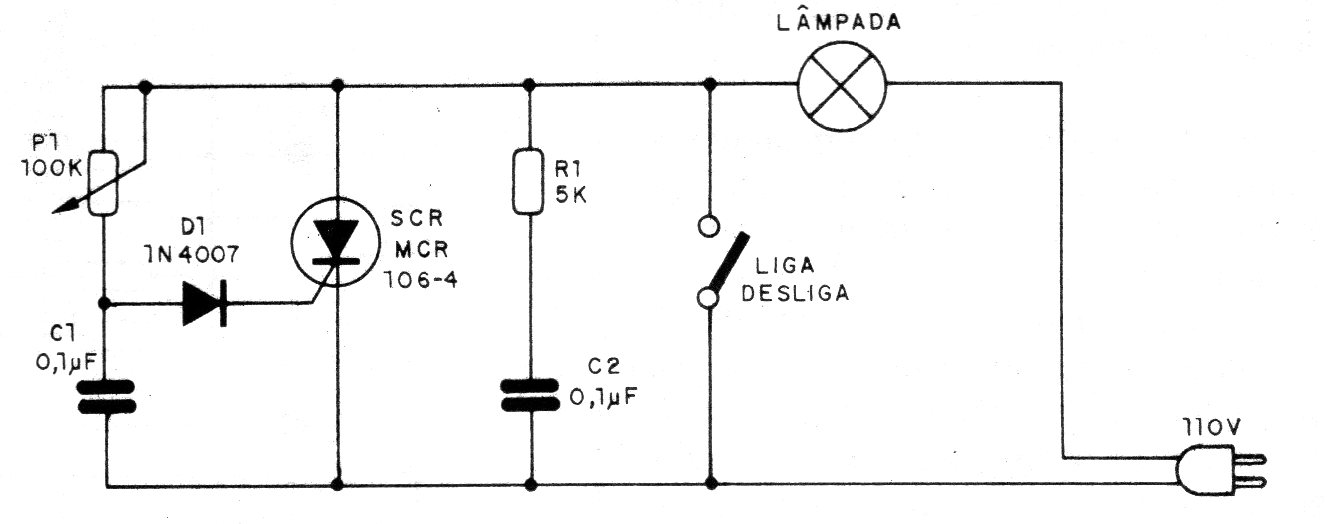

This circuit preheats incandescent lamps, thus avoiding the impact of the current when switching on, which is the cause of most fires. The preheating adjustment is made in P1 and the circuit only works with incandescent lamps. With lamps above 40 W the SCR must be equipped with a heat sink.
