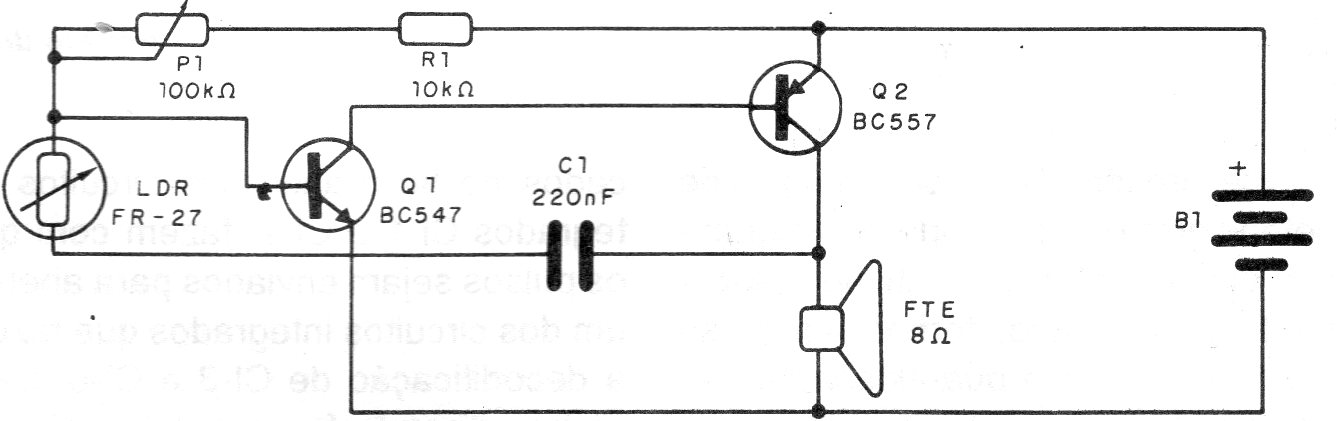

This is yet another version of the light-controlled oscillator that can be found on this website. This circuit has the frequency changed by the light that falls on the sensor. The central frequency is given by the capacitor and the supply can be done with voltages from 3 to 6 V.
| Clique na imagem para ampliar |
