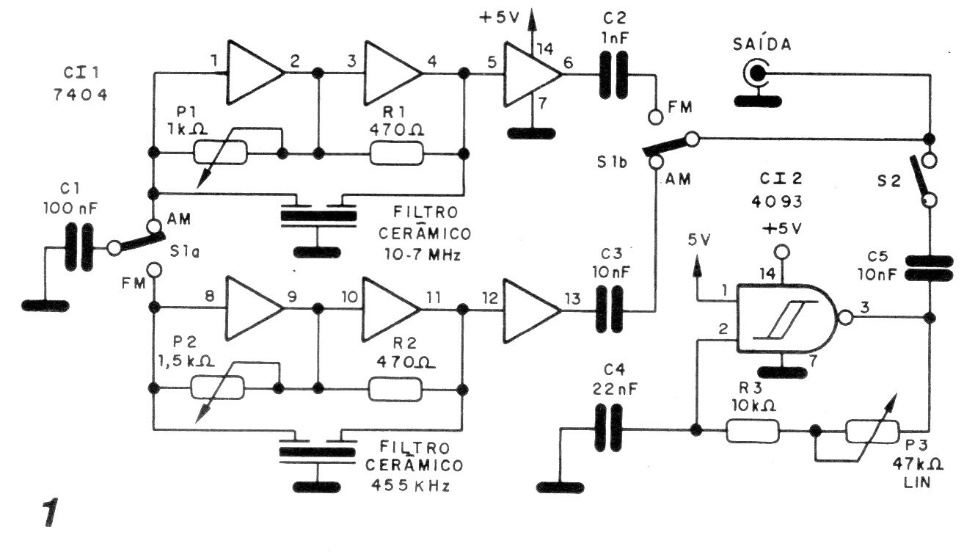

This circuit generates signals for the calibration of IFI (Intermediate Frequency) of traditional AM and FM addition. The circuit is from 1992. It uses ceramic filters that can be obtained from disused radios to generate the tuning frequency accurately.
