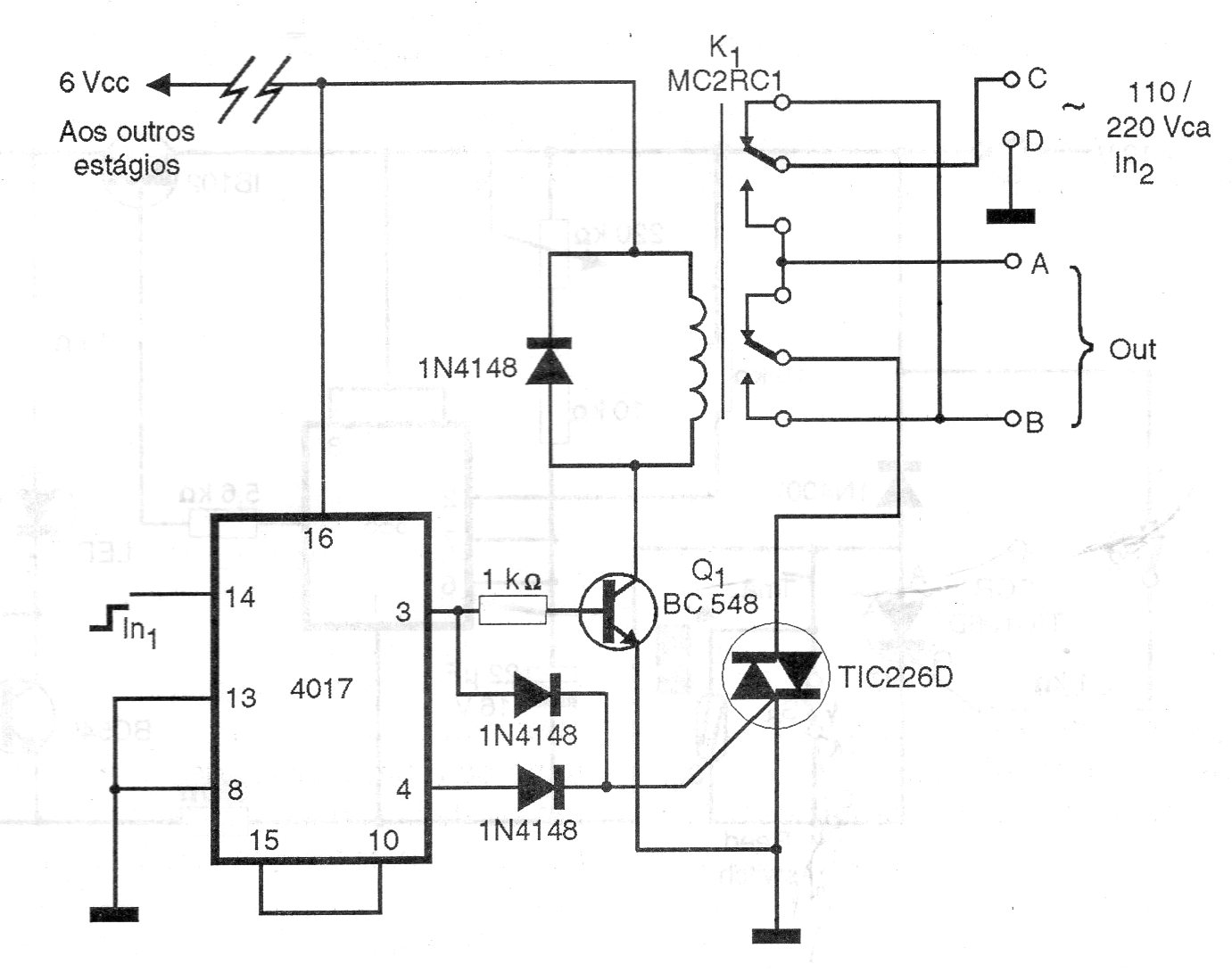

We found this circuit in a 1997 documentation. Its purpose is to turn a load on or off using digital signals, or to reverse the direction of rotation of an engine, when controlling a gate. The power must be supplied with voltage according to the relay used. In the example we also have the control of a triac to turn the load on or off.
