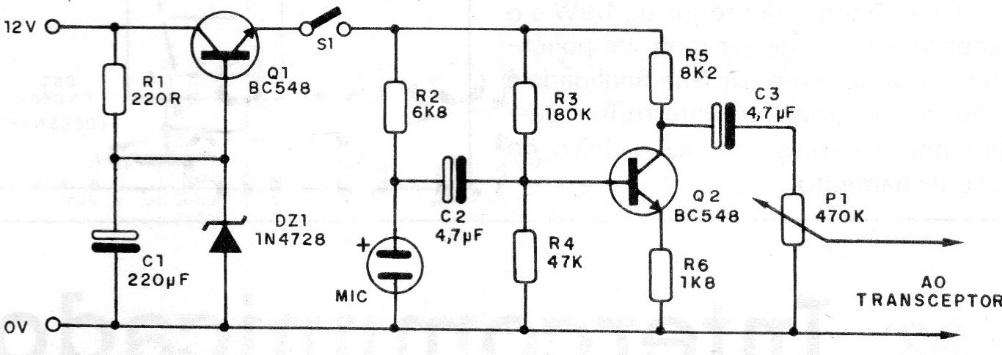

This circuit consists of an electret microphone amplifier powered by a 12 V voltage. A regulator is used to reduce the voltage. Signal cables must be shielded. The circuit can also be powered by a 9 V battery, eliminating the regulation stage.
