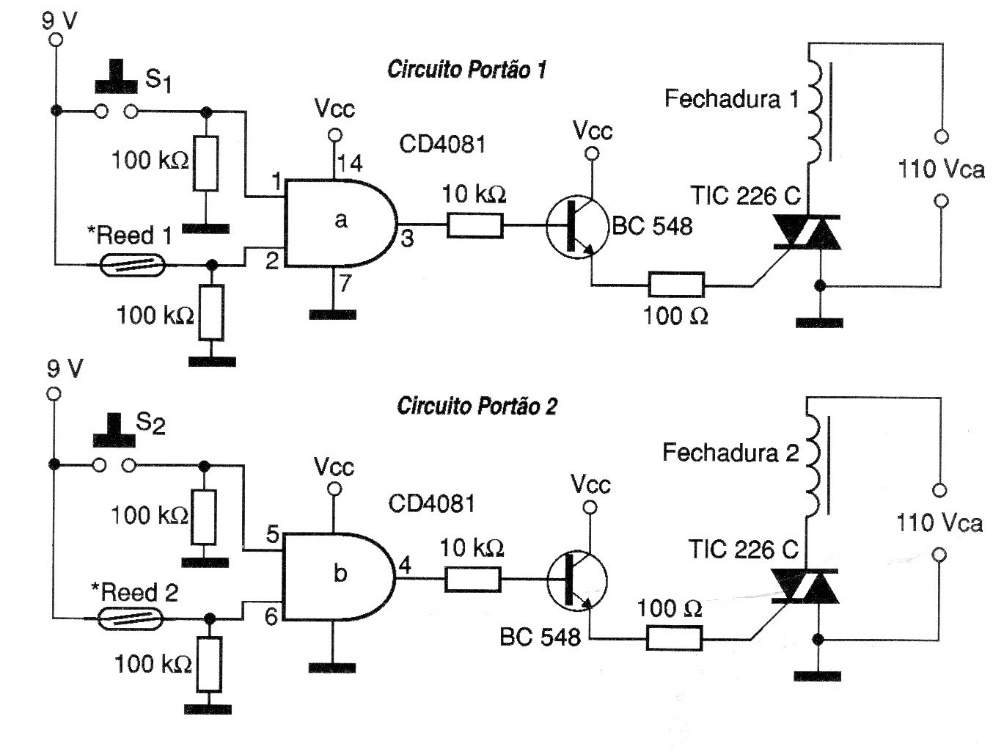

The purpose of this circuit is to control magnetic door locks activated by the power grid. The circuit must have a separate source of 6 to 12 V for the integrated circuit and transistors. For low current locks, the triacs do not need to be equipped with heat sinks.
