Photometer (CB17052E)

Details
Written by: Newton C. Braga

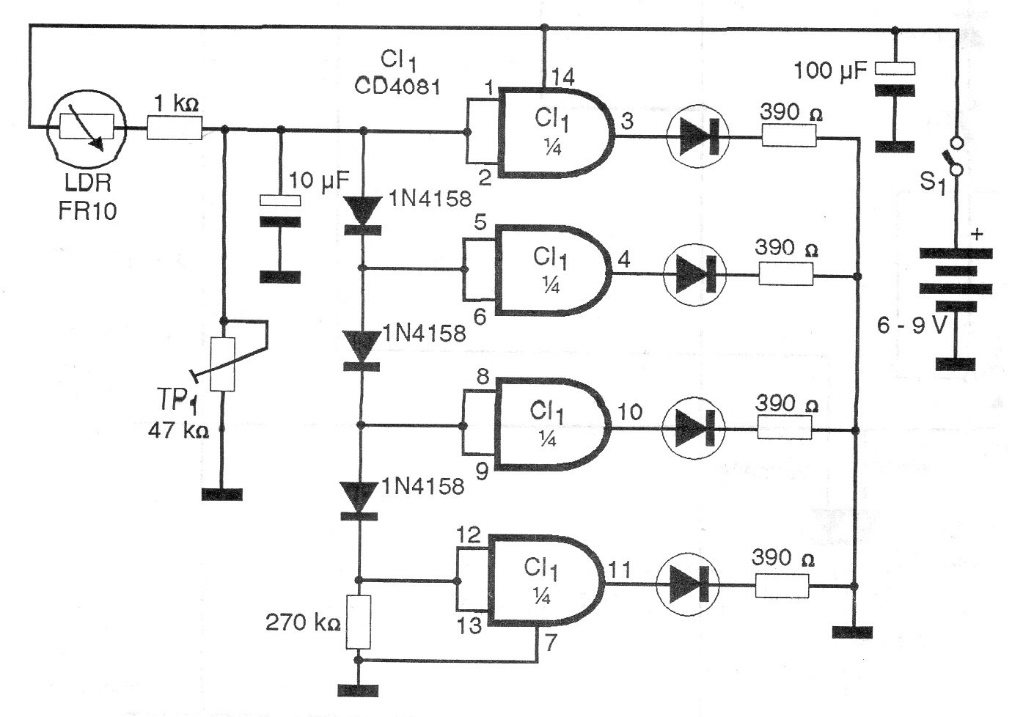

This simple Bargraph photometer with 4 LEDs was found in a 1997 documentation. The scale is adjusted in a trimpot and the sensor can be any common LDR. Power can be supplied by cells or battery.
