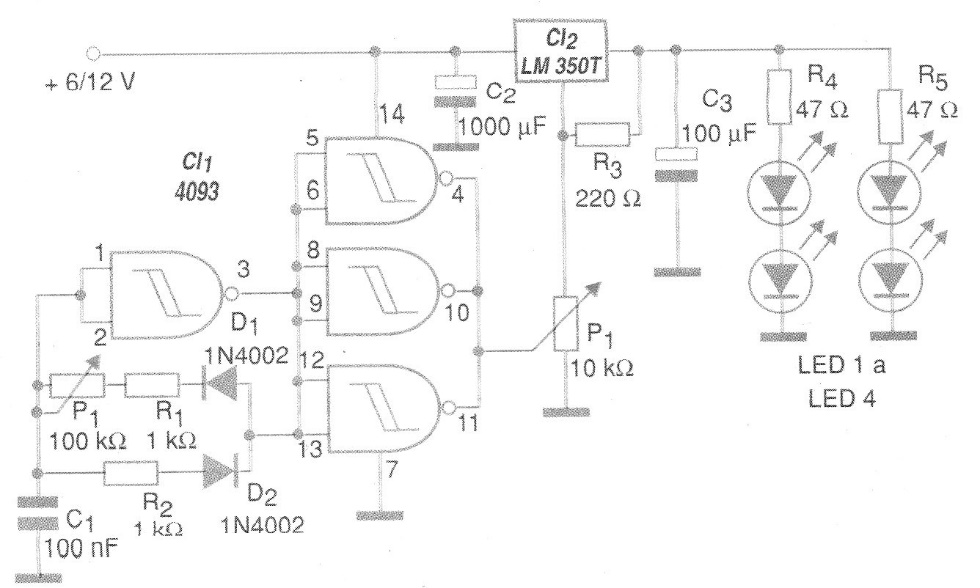

With this circuit you can control up to 3 A of LEDs in different sequences, using a PWM modulation. The LM350 circuit must be equipped with a heatsink if the total current of the controlled LEDs is greater than 500 mA. The maximum is 3 A and the input voltage can be between 6 and 12 V. The resistors in series with the LEDs determine the maximum brightness.
