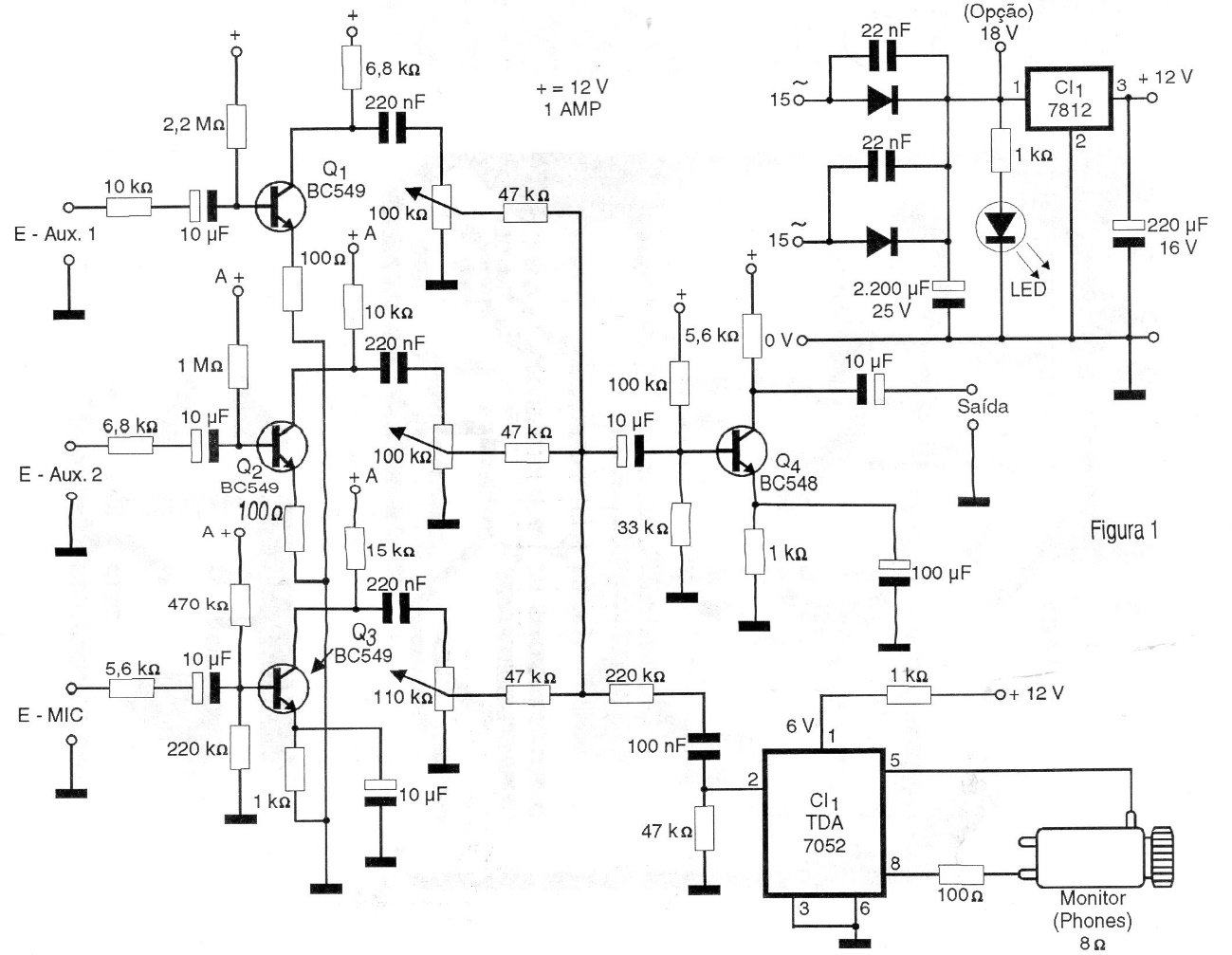

All the components used in this 1997 circuit are still common in our market. The circuit must be powered by a 15 V source, with its own regulator. Input signal output cables must be shielded. The output is mono for a low impedance phone, two of which must be fitted for a stereo version.
