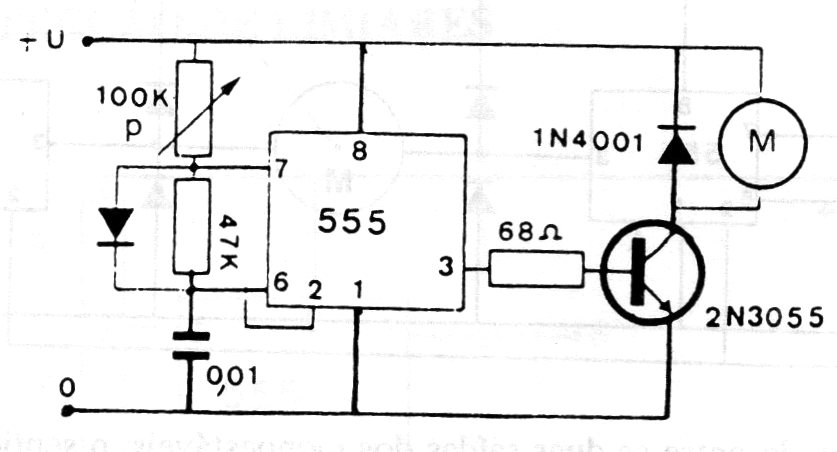

Motors of up to 3 or 4 A can be controlled with this PWM circuit. The circuit can be used with 5 to 15 V motors and the transistor must have an excellent heat sink for higher currents. The capacitor can be changed to find the ideal operating point.
