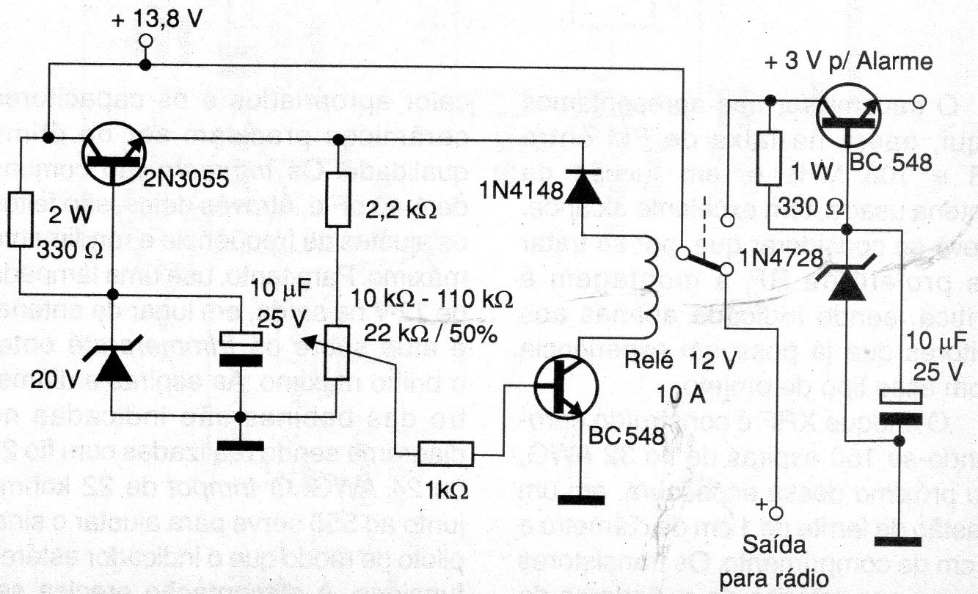

This circuit trips when the input voltage exceeds 13.8 V, which is an important value in the case of automotive sources. The relay is 12 V and the trigger point is set in the pot. The 2N3055 transistor must be provided with a small heat radiator.
| Clique na imagem para ampliar |
