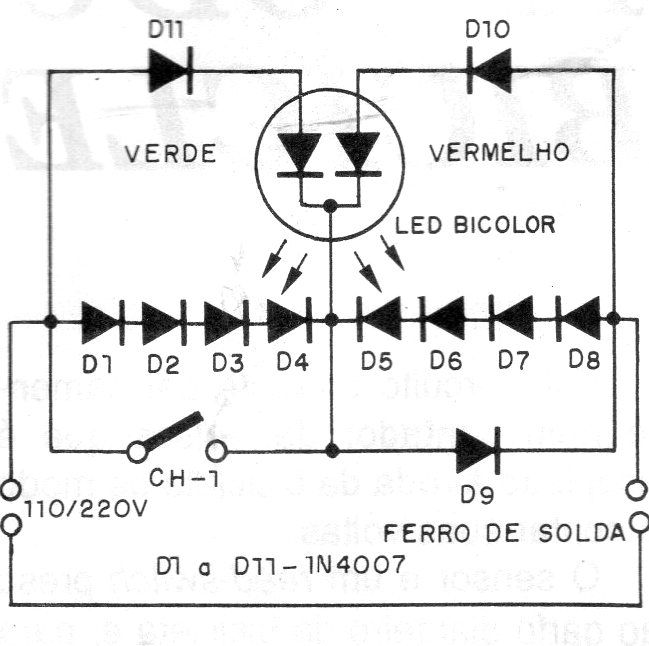

This circuit was found in a 1995 documentation, eventually requiring two resistors in series with 10 and D11 to limit the current in the LEDs. These resistors can be from 1k to 2.2k. The circuit is suitable for both the 110 V and 220 V power grid.
| Clique na imagem para ampliar |
