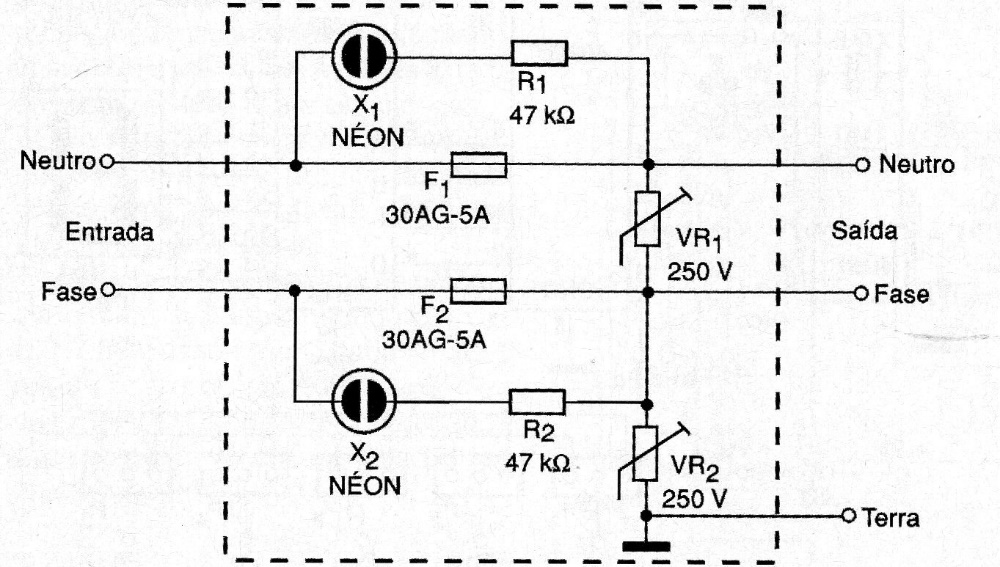

This line protector circuit was found in a 2002 documentation, but it is totally current and serves to protect sensitive equipment, such as computers, against transients coming through the power line. The circuit must be earthed and installed in a metal box.
