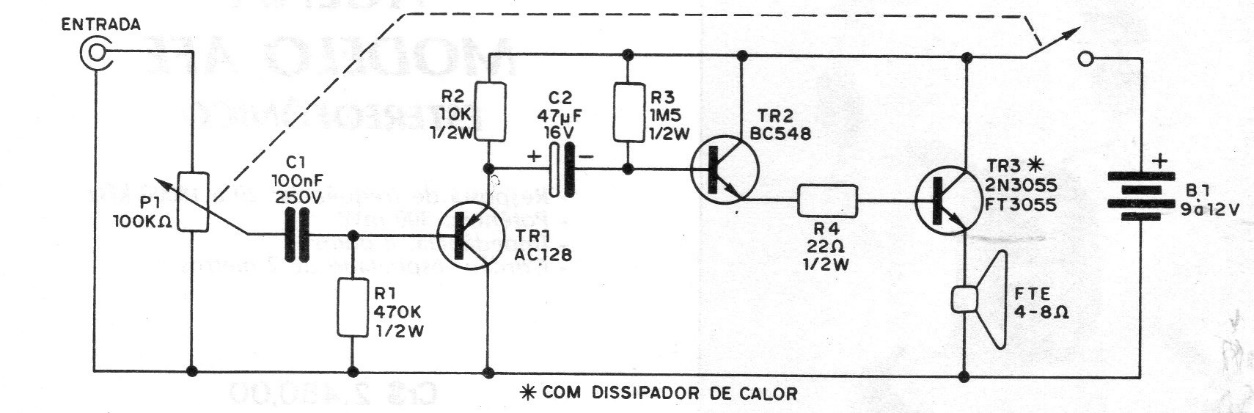

This simple transistor amplifier is from 1982 documentation. The output transistor must be mounted on a heatsink. The supply must be made by medium, large batteries or power supply, since the current consumed is high.
| Clique na imagem para ampliar |
