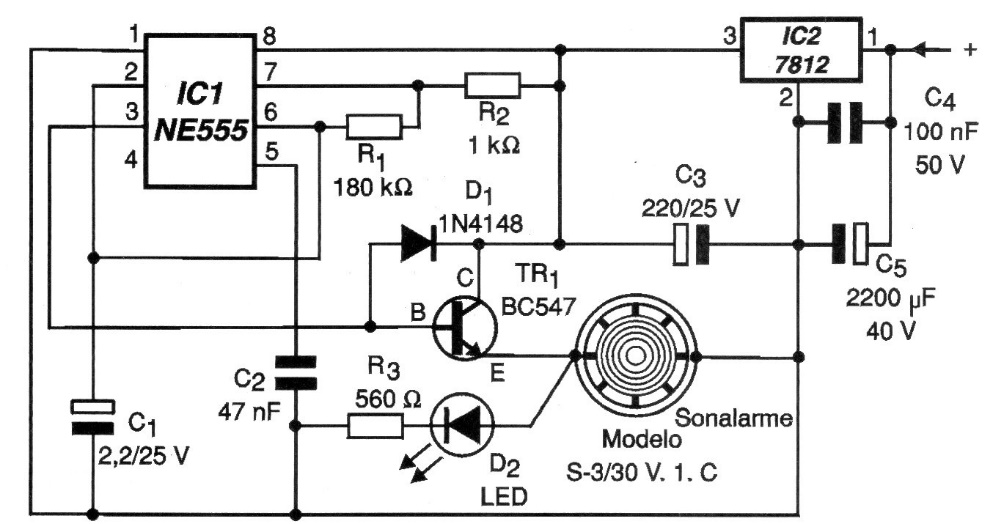

This simple circuit, based on an astounding 555, was found in a 2001 documentation. The circuit causes an LED to flash to the same type as a buzzer with oscillator, of the Sonalert type. The times depend on R1 and R2 and the capacitor C1 that can be changed.
| Clique na imagem para ampliar |
