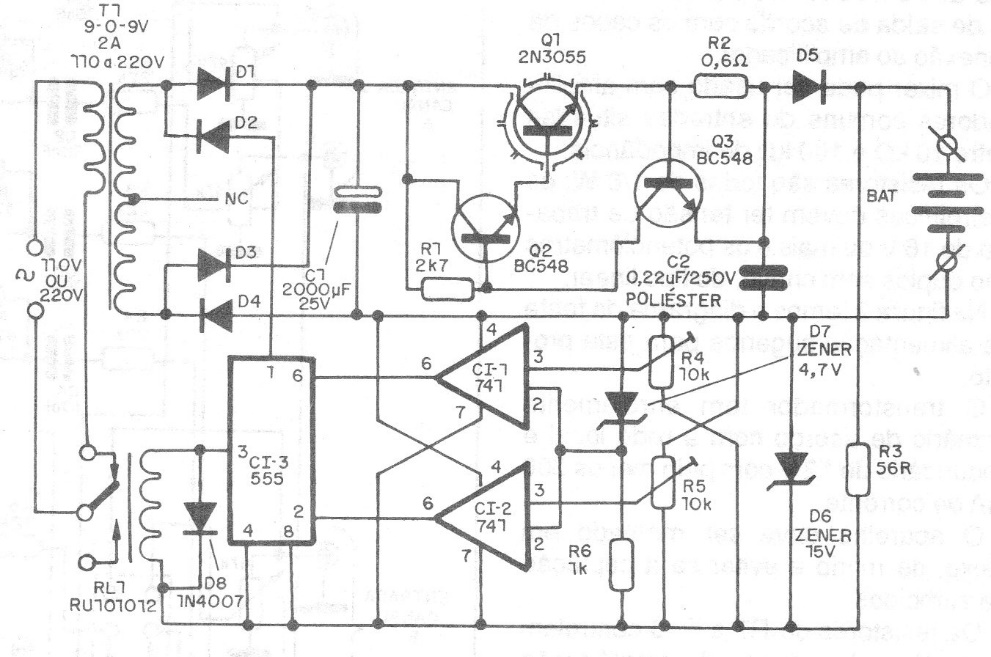

We found this circuit in a 1990 documentation. Its purpose is to maintain the charge of a battery, the type normally used in alarms. The circuit consists of a charger that monitors the battery charge and is activated when it is reduced. The power transistor must be equipped with a heat sink and the adjustment of the trigger point must be made in the trimpots.
