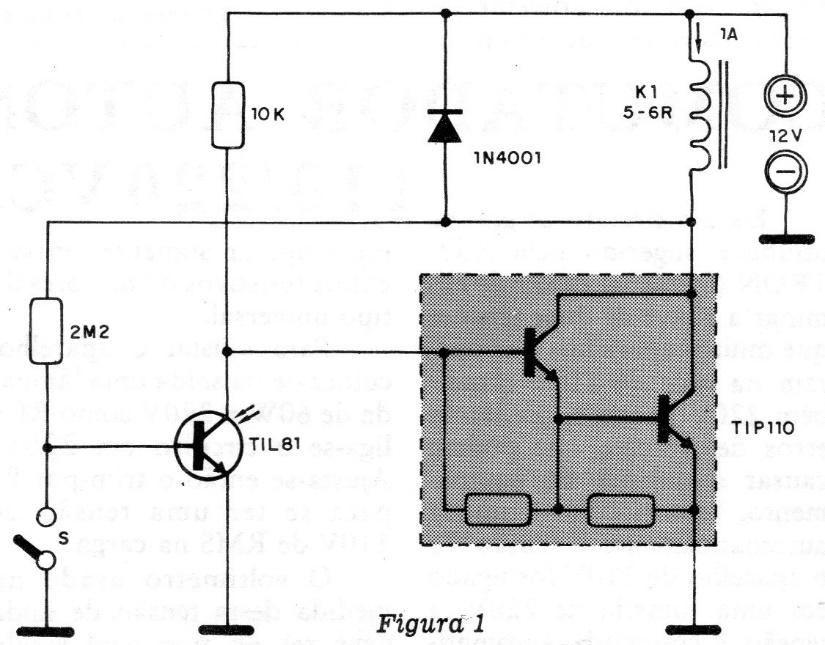

This circuit triggers a relay when the light that falls on the phototransistor is cut off. The supply can be made with 6 or 12 V depending on the relay used. The 2M2 resistor can be changed to modify the sensitivity of the circuit.
