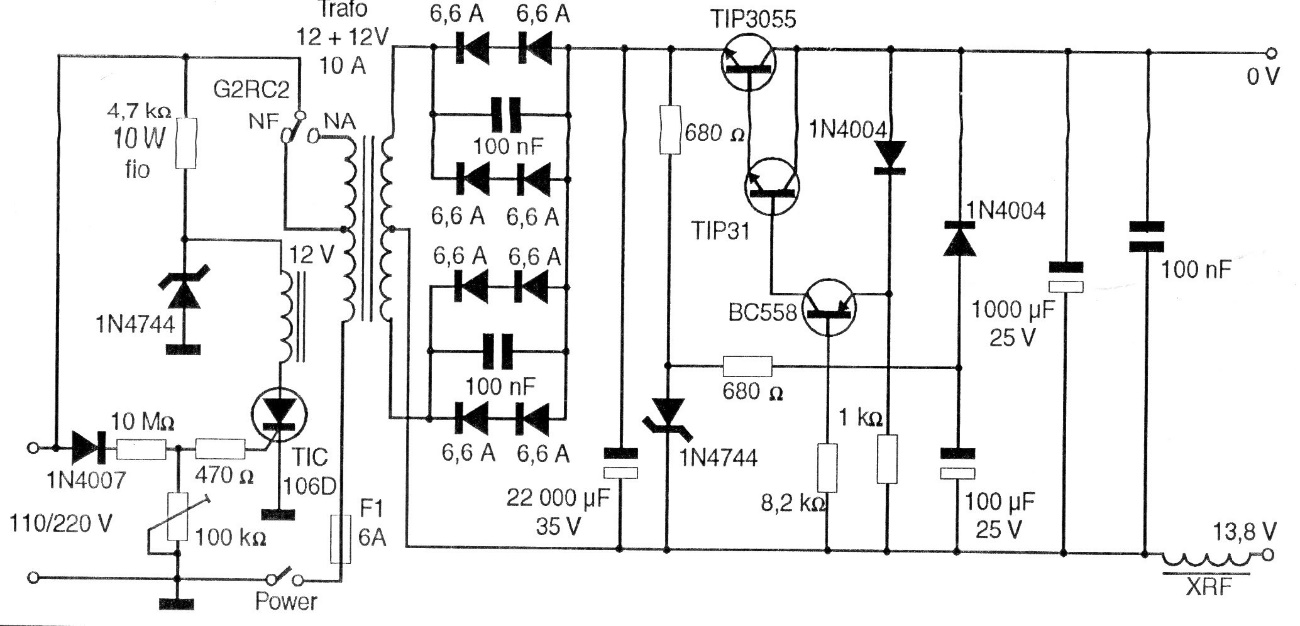

This 13.8 V power supply with 10 A was found in a 1997 documentation. It is intended for the domestic supply of devices used in the car such as CD players, amplifiers, FM radios, etc. The power transistors must be equipped with heat sinks. The circuit has an automatic voltage switch whose trigger point must be adjusted in the trimpot.
| Clique na imagem para ampliar |
