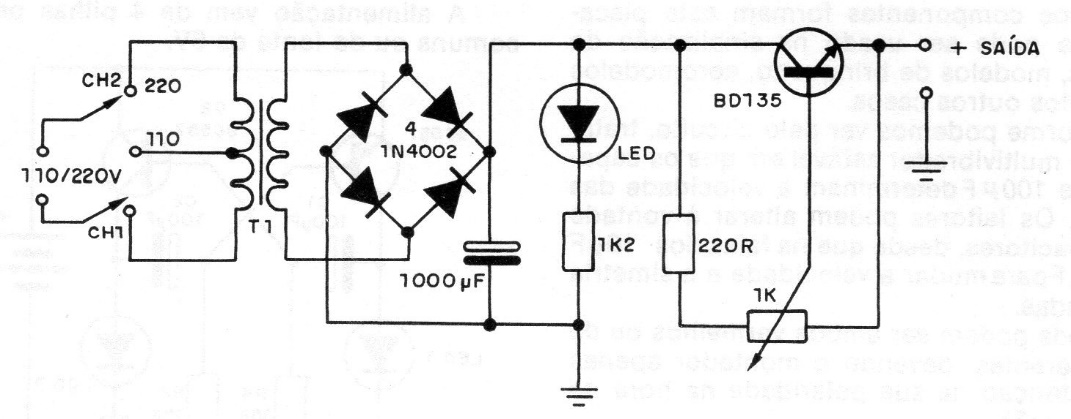

This power supply can supply voltages from 3 to 9 V and is very useful on the bench. The maximum current is in the order of 500 mA for the transistor used, which must be mounted on a heatsink. The transformer is a 6 or 7.5 V x 500 mA.
| Clique na imagem para ampliar |
