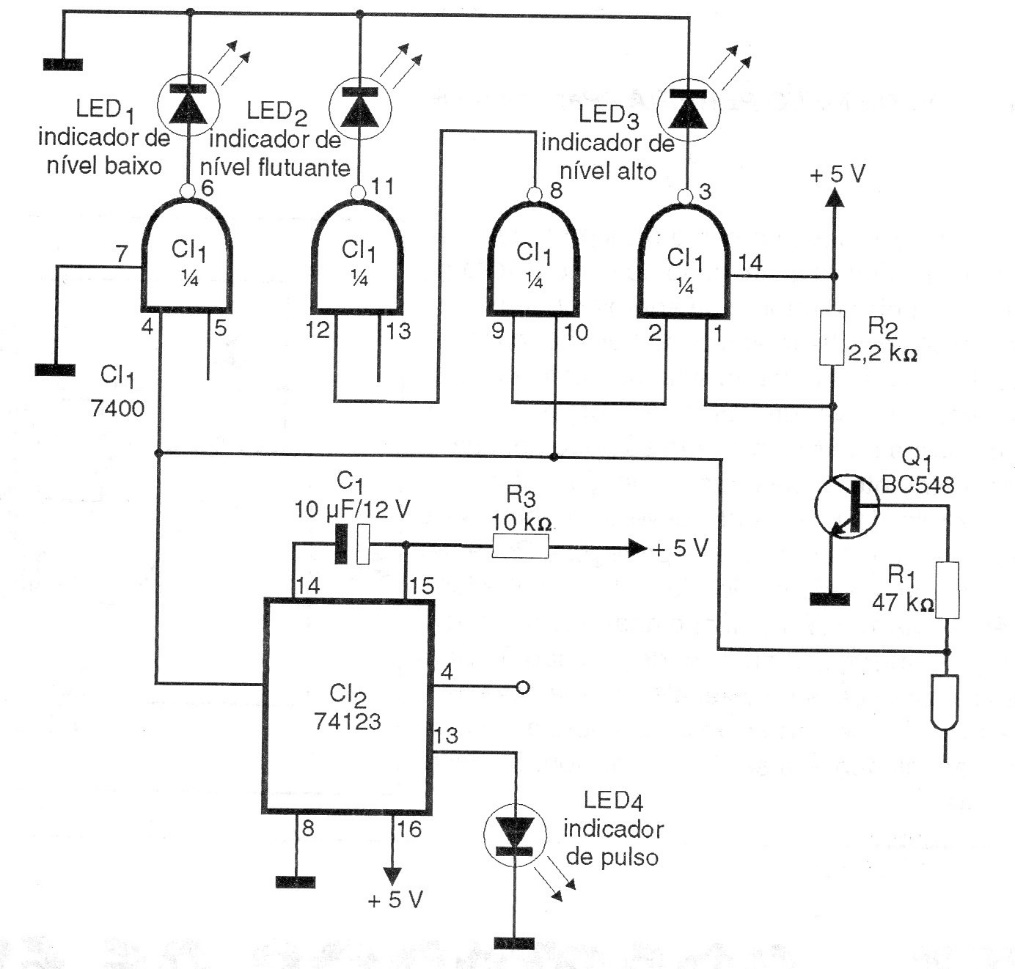

This circuit is indicated for the analysis of TTL circuits, being powered by 5 V taken from the circuit under analysis. The circuit has three indicator LEDs, two for high and low levels and the third for pulses.
| Clique na imagem para ampliar |
Logical Level Indicator (CB17110E)
- Details
- Written by: Newton C. Braga
