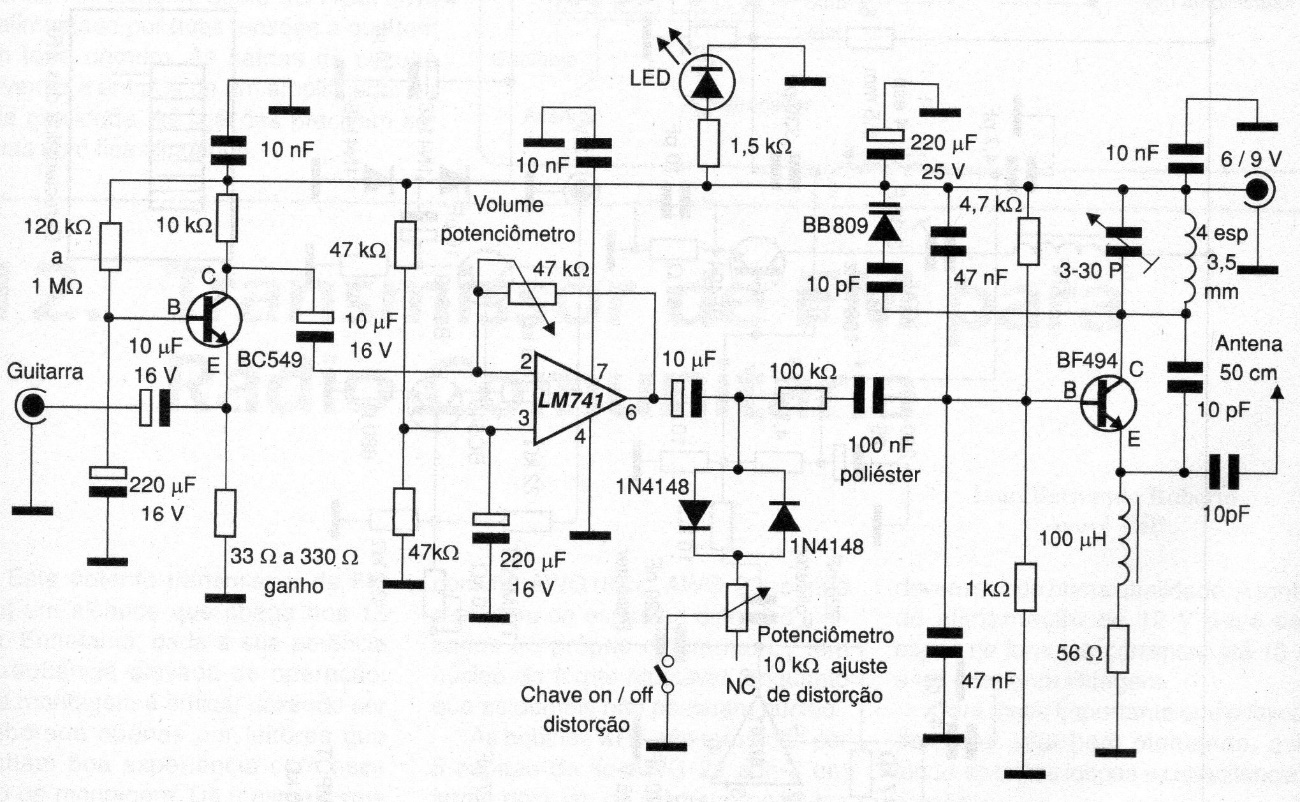

We found this circuit in a 2003 publication. The indicated coil is for capturing the signals in an FM receiver. The antenna consists of a 20 to 40 cm wire or a telescopic type. The circuit is powered by voltages from 6 to 9 V and has a range of a few tens of meters.
| Clique na imagem para ampliar |
