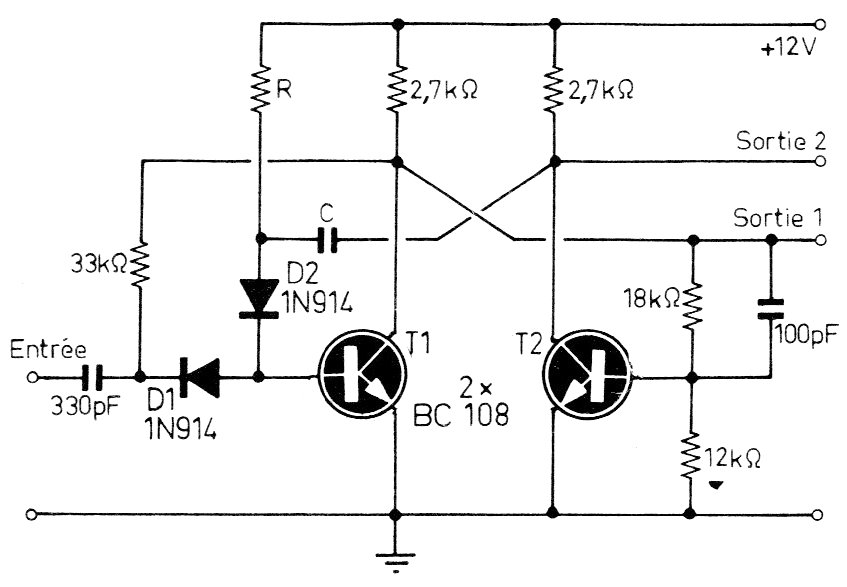

The modern equivalents of the transistors used in this 1980s setup are BC548 or even BC547 and BC549. The time constant of the circuit is given by capacitor C and the supply is made with a voltage of 12 V. The diodes are general-purpose types.
